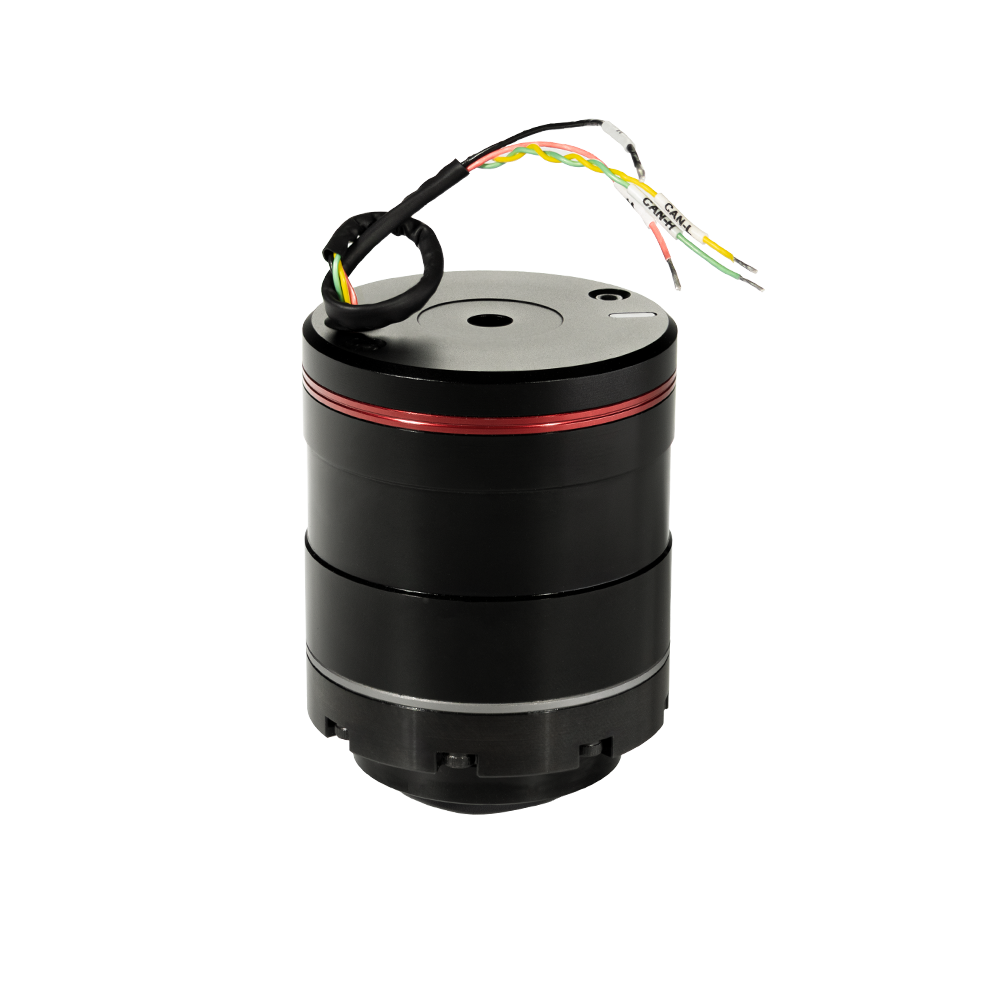

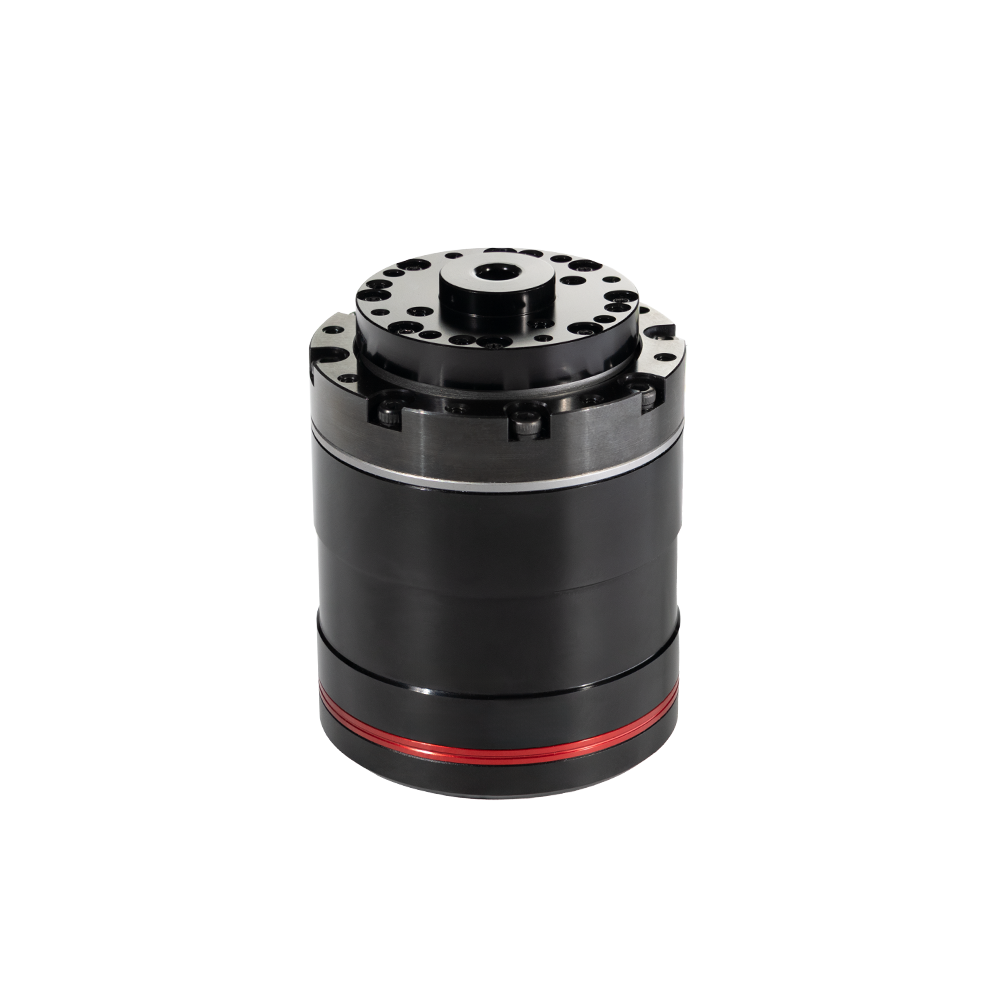

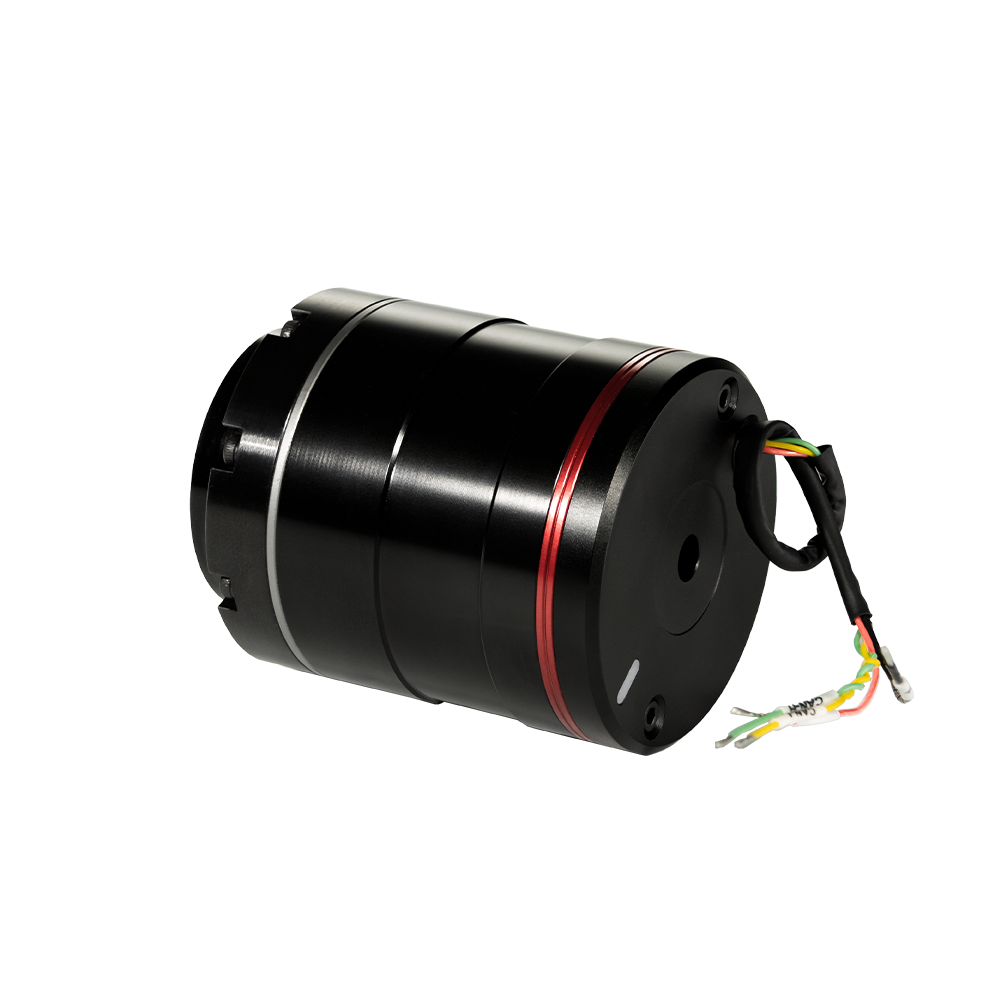

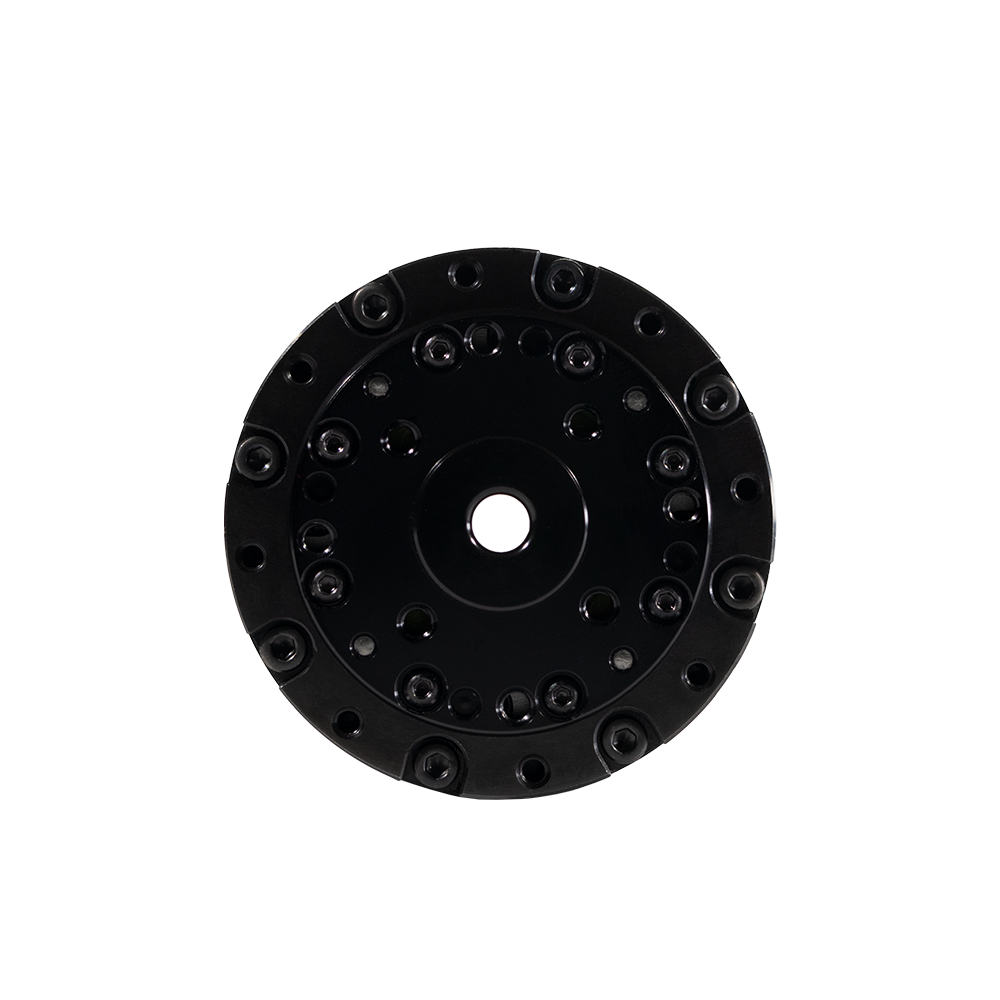

EA52 Rotary Actuator
51:1 / CAN / Without Brake
$2,825.00
Skip to product information
EA52 Rotary Actuator
$2,825.00
EA Series — Cost-Effective Motion Solution
The EA Series is our original line of integrated rotary actuators, designed to meet the needs of most basic rotary motion applications while offering excellent cost performance.
The EA Series supports Profile Velocity Mode and Profile Position Mode, and features a hollow shaft design, power-off homing, and adjustable PID parameters. It provides reliable and practical motion control while maintaining a highly competitive overall system cost.
If your application has relatively simple functional requirements and cost is a key consideration, the EA Series is an ideal choice.
| Gear Ratio |
51:1
|
101:1
|
| Backlash |
≤20arcsec
|
≤10arcsec
|
|
Supply Voltage
|
24V
|
24V
|
|
Continuos Torque
|
3.2Nm
|
4.8Nm
|
|
Limit for Repeated Peak Torque
|
7.8Nm
|
10.5Nm
|
|
Limit for Average Torque
|
5.1Nm
|
8.7Nm
|
|
Limit for Momentary Peak Torque
|
15Nm
|
23Nm
|
|
Operating temperature
|
-20-80℃
|
-20-80℃
|
|
Output Velocity
|
0-60rpm
|
0-30rpm
|
|
Weight
|
386g
|
386g
|
